Stringing solar panels in series involves connecting each panel to the next in a line as illustrated in the left side of the diagram above. Off grid solar system wiring diagram collections of taking a tiny house f grid.
. Solar Panel Connection Diagram Homedecorations Solar Power To Fuse Box Wiring Diagram Provider B Provider B Gardengym It Solar Energy Installation Panel How To Make A Solar Power System
Off Grid Solar Wiring Diagram At Your Home The Power Arrives To A Spot Before Being Sent Out To The Remainder Off Grid Solar Solar Heating Solar Power System
Off Grid Solar Wiring Diagram At Your Home The Power Arrives To A Spot Before Being Sent Out To The Remainder Off Grid Solar Solar Heating Solar Power System Two 24v solar panels are to be connected in parallel.
. 24v solar charge controller. Solar panel wiring diagram 6usage and limitations. We have some solar panel wiring diagrams just for reference here.
With the series parallel arrangement in the solar panel wiring diagram above you can power 48 volt appliances while charging your batteries faster 14 amps thus storing more energy per available daylight hours plus you get 420 amp hours of storage capacity. So in this case weve got 220 watts. 24v solar panel 2.
Wiring pv panel to charge controller 12v battery 12vdc load. Connecting solar panels in series. In your suggested scheme there are two power converters in the path from solar panels to the batteries whereas in the other model that you mentioned one power converter ie.
In this simple solar panel wiring tutorial we will show how to connect a solar panel to the solar charge controller battery and direct dc load according to the rating. Solar panel here we have taken a 24v solar panel. You can go down here and these are all for reference.
When stringing in series the wire from the positive terminal of one solar panel is connected to the negative terminal of the next panel and so on. Nov 12 2016 solar power system wiring diagram electrical engineering blog. These are just to see which size components and how you want to plug everything together.
When you need ac you need to make it and inverter is needed here. Wiring diagram for solar panel to battery free downloads wiring. F grid solar wiring diagram best home solar system design.
Everyone is going to be different so maybe youll find one 240 watt solar instead of two 100 watt panels. Just like a typical battery you may be familiar with solar panels have positive and negative terminals. The is a great power reserve.
The charge controller is only one in the path between the solar panels and battery. Keep in mind that ac load is not connected in this pv panel wiring tutorial which needs extra equipment such as ups and inverter to convert the solar panel and. F grid solar wiring diagram.
A wiring diagram is a simplified conventional pictorial depiction of an electric circuit. The losses in the second power converter is avoided in the system. Assortment of solar panel wiring diagram schematic.
If you want to connect more load then you may need one more 24v solar panel. A lot of this stuff is variable and. It shows the parts of the circuit as streamlined forms and also the power and also signal links in between the devices.
1 pcs 24v rechargeable battery. Proper wiring diagram of solar panel lets know solar panel wiring diagram with battery charge controller inverter and loads.
Solar Panel Calculator And Diy Wiring Diagrams For Rv And Campers
Diagram Home Solar Panel Wiring Diagram Full Version Hd Quality Wiring Diagram Adrenalizasuspensiones Behenry Fr
Solar Panel Installation Diagram Solar Power System Solar Energy Panels Solar Panel System
Solar Panel Calculator And Diy Wiring Diagrams For Rv And Campers
12 Solar Power Wiring Diagram Addict At Panel Solarenergy Solarpanels Solarpower Solarpanelsforhome Solarpanel Rv Solar Panels Solar Panels Solar Power System
Solar Panel System Connection Diagram Solar Solar Panel Youtube
How Many Solar Panels Batteries Inverter Do I Need For Home
Simple Photovoltaic Solar Power System Setup For The Remote Home Diy Solar Panel Solar Panel Installation Solar Heating
Diagram Home Solar System Wiring Diagram Full Version Hd Quality Wiring Diagram Themortgageyellowbook Behenry Fr
Solar Panel Wiring Diagram And Installation Tutorials
Wiring Diagram Of Solar Power System Bookingritzcarlton Info Solar Power Energy Solar Power System Solar Energy For Home
Amazon Com Eco Worthy 3900w Solar Panel System For Homes Off Grid 48v Solar Power System With 20pcs 195w Solar Panel And 6 String Pv Combiner Box And 60a Lcd Controller Garden

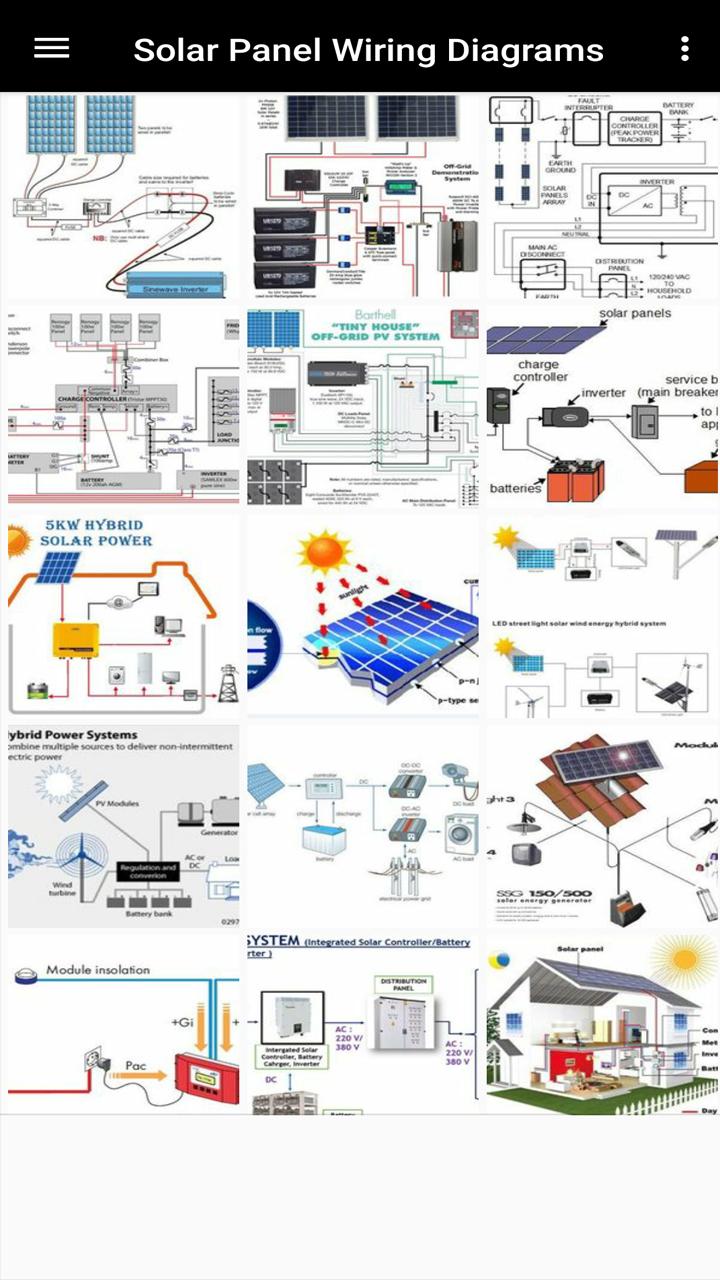

Solar Panel Wiring Diagrams For Android Apk Download
